Description

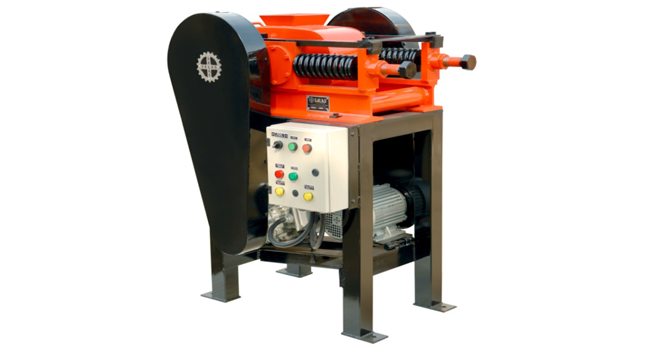

Robust Roller Crusher with steel-manganese rollers, mounted over monoblock bearings.
It includes transmission belts, protective covers, removable sample reception hopper and lower box.
Mechanical setting adjustments.
It has T1 steel plate sidings in crusher zone.
Top working speed range: 237 to 260 rpm.
SPECIFICATIONS
| MODEL |
ENGINE |
WEIGHT |
BROAD |
HIGH |
LONG | |
| 8”X8” | 2 – 2 HP | 260 RPM | 450 KG | 600 MM | 1350 MM | 900 MM |
| 10”X12” | 2 – 3 HP | 260 RPM | 525 KG | 700 MM | 1350 MM | 1100 MM |
| 14”X20” | 2 – 7,5 HP | 260 RPM | 720 KG | 1050 MM | 1430 MM | 1250 MM |
THEORETICAL OUTPUT CAPACITY TMPH – OPENING SETTINGS
| MODEL |
ENTRY (MAX) |
TPH |
| 8”X8” | 1/2” | 2.5 |
| 10”X12” | 3/4” | 4.0 |
| 14”X20” | 1” | 6.6 |
THEORETICAL PRODUCTION CAPACITY TMPH – OPENING SETTINGS
| MODEL | 0.5 MM | 1 MM | 1.5 MM | 2.0 MM | 2.5 MM |
| 8”X8” | 0.55 | 0.75 | 0.95 | 1.15 | 1.35 |
| 10”X12” | 0.98 | 1.23 | 1.56 | 2.07 | 2.35 |
| 14”X20” | 1.81 | 2.25 | 2.86 | 3.80 | 4.35 |
| FED WITH LIMESTONE |
